Papa hot selling fully automatic single row packing line for sales

Place of Origin	China
ब्रांड नाम	ipapa
प्रमाणन	CE
Model Number	PA-250

उत्पाद विवरण

Name:

Full automatic no empty bag flow wrapping machine

Power (kw):

3KW

Size (L*W*H mm):

3400*830*1350

Packing speed (bag/min):

35-150

Packaging film width (mm):

90-240

Sealing pressure (Newton/mm2):

Packaging film material:

OPP、PE、PVC、OPP/CPP、PT/PE、KOP/CPP、Aluminum film etc.

भुगतान और शिपिंग की शर्तें

Minimum Order Quantity

मूल्य

विनिमय योग्य

Packaging Details

Fumigation-free wooden box

Delivery Time

7 days

Payment Terms

T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability

10pics/month

उत्पाद वर्णन

Papa hot selling fully automatic single row packing line for sales

Description:

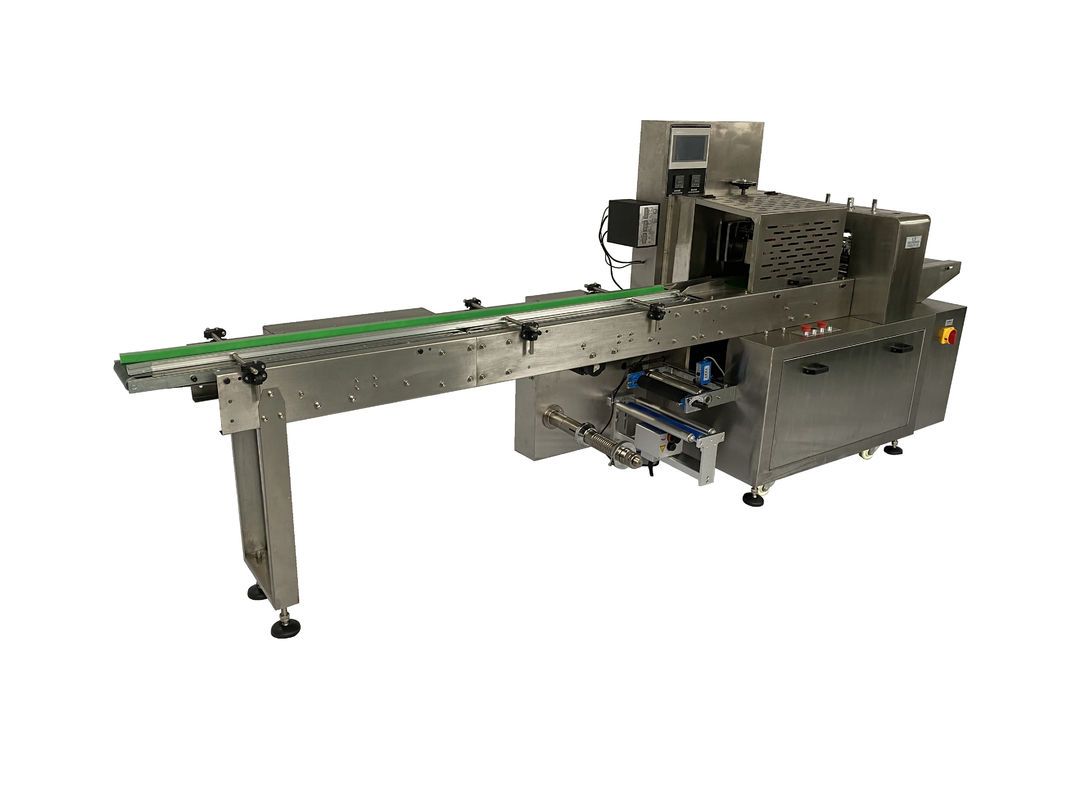

The fully automatic snack protein bar packaging line is a horizontal flow wrapper machine equipped with an automatically connected conveyor with tracking sensors. Customers simply place their products on the conveyor, which then precisely moves them to the packaging machine for sealing, ensuring a secure seal. This protein bar packaging machine is also known as a pillow-shaped packaging machine due to the pillow-like shape of the finished bags. The machine offers excellent stability, low maintenance, and continuous operation, making it a highly cost-effective solution. The entire packaging process requires no human intervention, ensuring a safe, reliable, and highly automated process.

Flow wrapping machine(film downside wrapping)

Feature:

1) The main control circuit utilizes a frequency converter and a PLC touch screen display, offering an excellent human-machine interface and centralized, intuitive operation.

2) The entire machine utilizes dual frequency converters, offering a wide frequency and speed range, enabling stepless speed regulation. The packaging speed can be set according to the production line's production speed, ensuring optimal compatibility.

3) Once the film and bag lengths are set, a highly sensitive electronic sensor automatically tracks the bag length, ensuring precise length control without manual adjustment.

4) Each sealing stage features independent temperature control, making it suitable for a variety of packaging materials and ensuring a secure, aesthetically pleasing seal.

5) An inkjet printer can be configured to print information such as the production date and batch number simultaneously with the packaging.

Specifications and technical parameters	Packing speed (bag/min)	35-150
	Packaging film width (mm)	90-240
	Bag size (mm)	Length(flat bag)	85-300
		Width	30-100
		Height	5-30
	Total power (kw)	3.0
	Main motor power (kw)	0.75+0.75
	Heating power (kw)	1.2
	Machine net weight (kg)	600
	Machine dimensions (length * width * height) (mm)	1640×830×1350
	Machine noise (dB)	≤78dB
	Qualified rate of bagging (percentage)	≥98%
	Sealing pressure (Newton/mm2)	15
	Voltage	220V 50Hz
	Packaging film material	OPP,PE,PVC,OPP/CPP,PT/PE,KOP/CPP,Aluminum film etc.

Papa hot selling fully automatic single row packing line for sales 0

Papa hot selling fully automatic single row packing line for sales 1

Papa Industrial primarily uses flow wrapping machines for snack bars. The PA250 model is ideal for packaging protein bars, snack bars, fruit bars, candy bars, cereal bars, chocolate bars, and granola bars. Papa Industrial also uses flow wrapping machines for packaging cookies and tortillas. Whether it's a flow wrapping machine or a fully automated flow wrapping line, Papa Industrial can provide you with a turnkey solution for food packaging! Contact us for more information!
